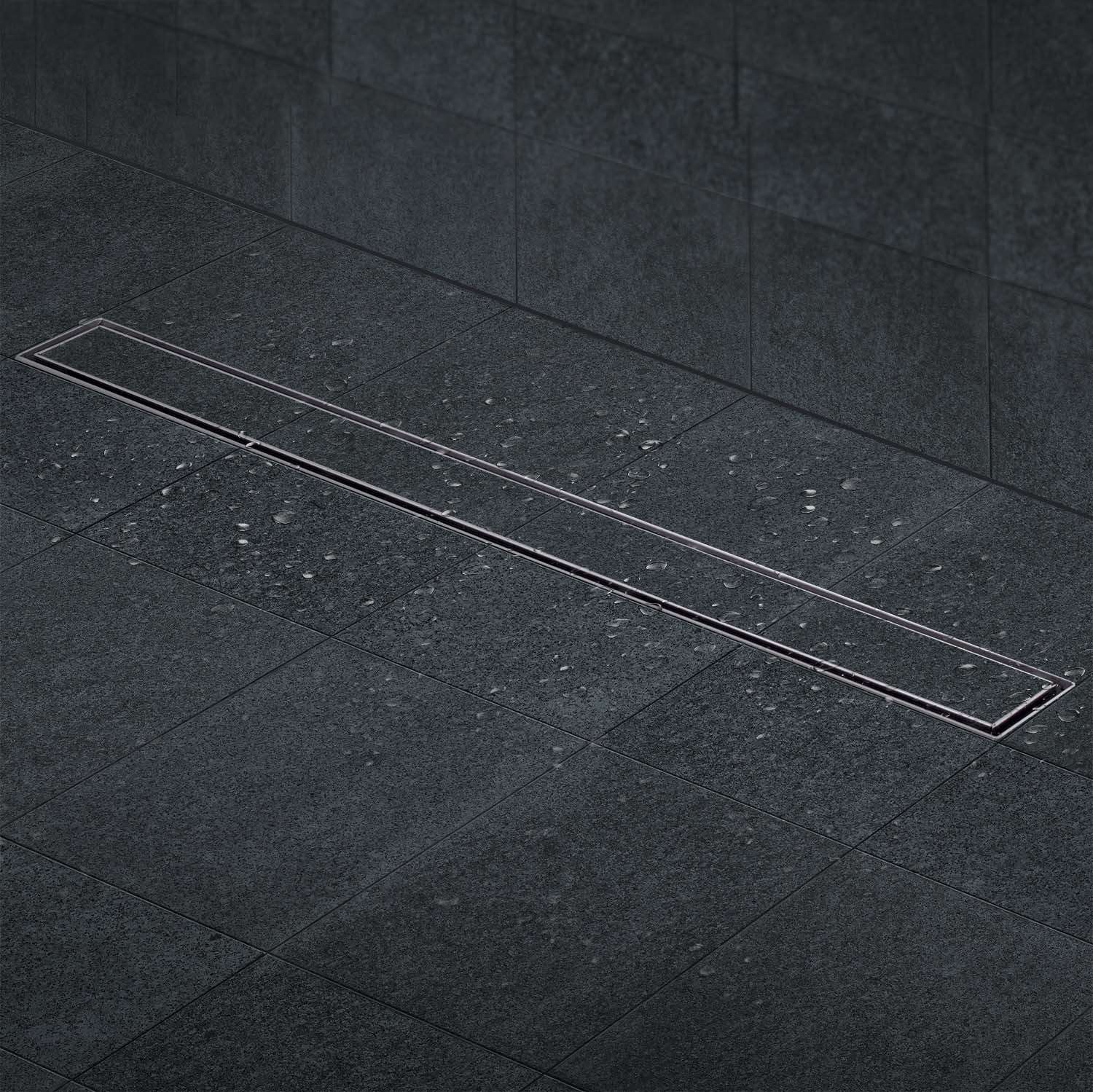

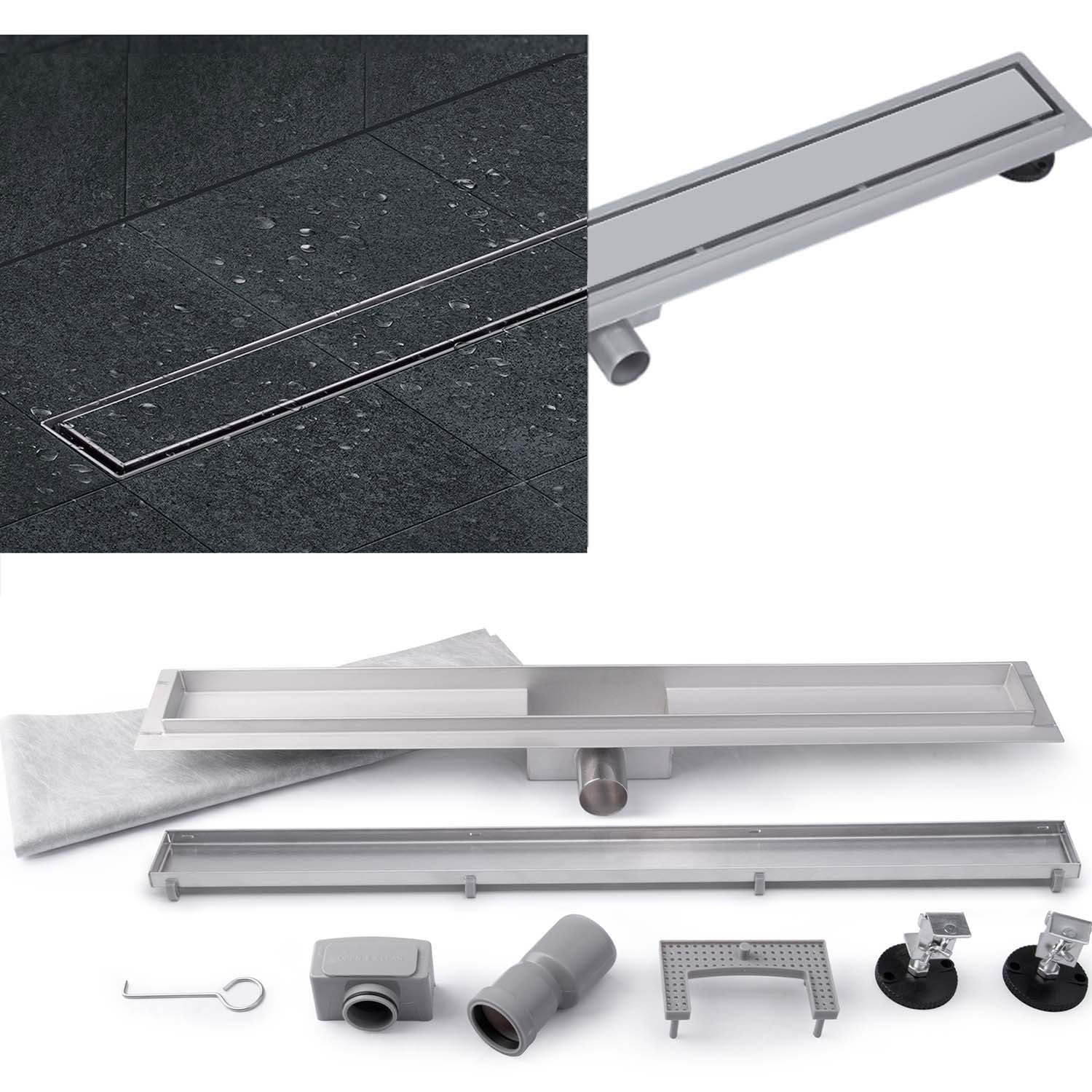

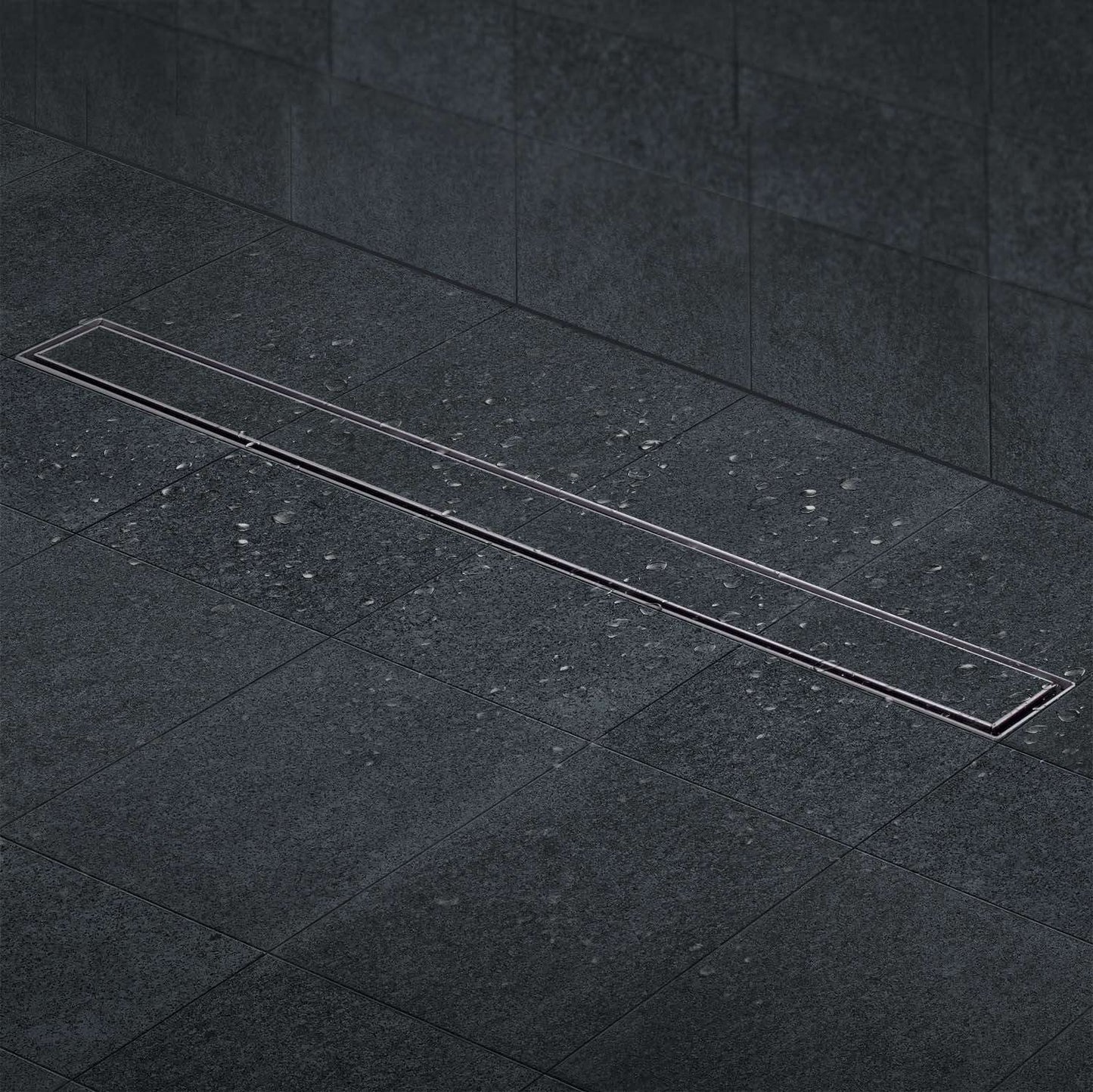

Line drain in stainless steel 90 cm
Combination of functionality and modern design
The functionality of the line drain means that it effectively drains water away in showers, while its aesthetic and modern appearance enables adaptation to all bathroom furnishings.
Advantages of the drain
- Made entirely of stainless steel 304

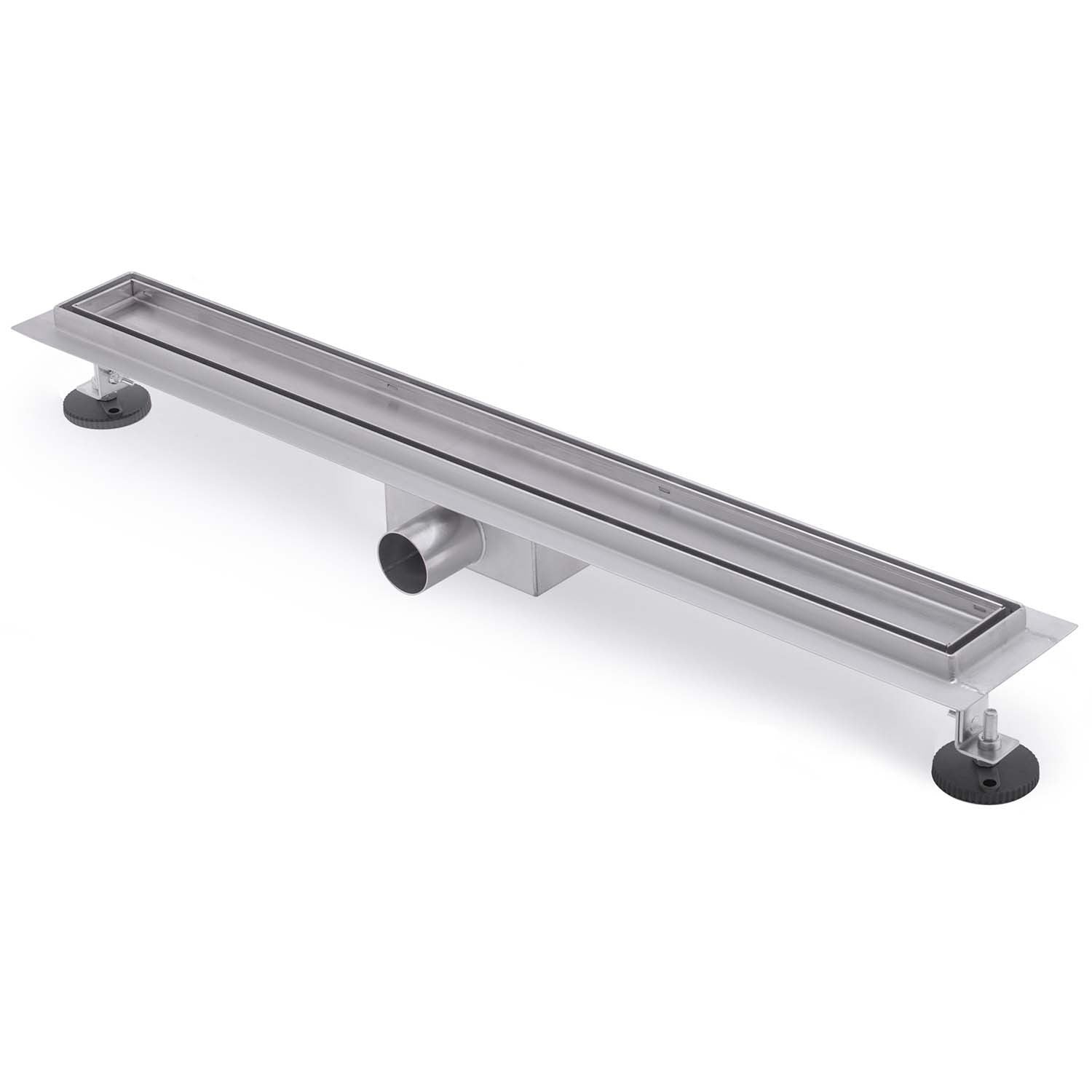

- Adjustable feet for easy level adjustment
- Equipped with a flange of approximately 2 cm which facilitates tiling
- Low steel siphon that can be cleaned from above

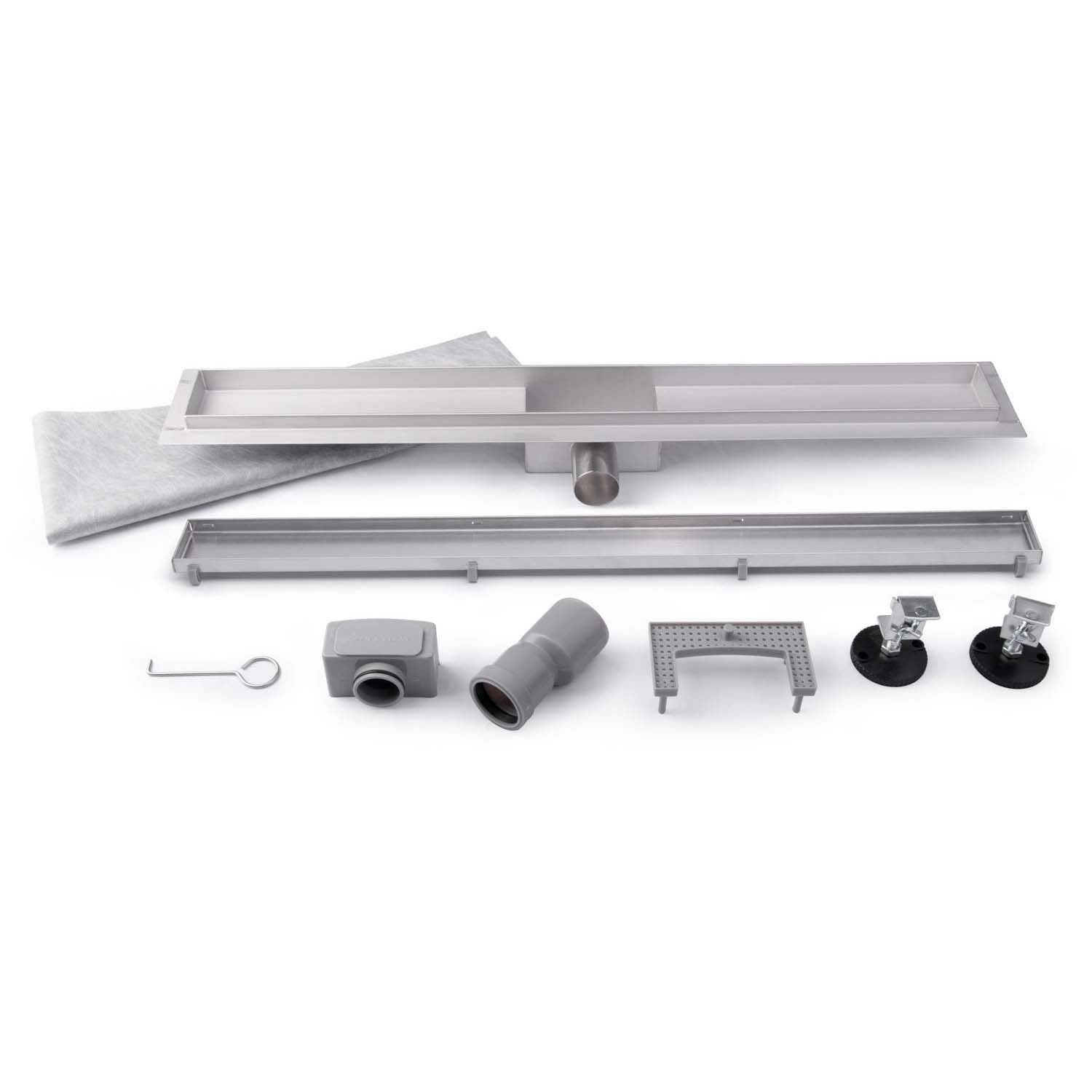

- Adapter for siphon 40/50 mm with seal included
- Mounting depth only 52 mm

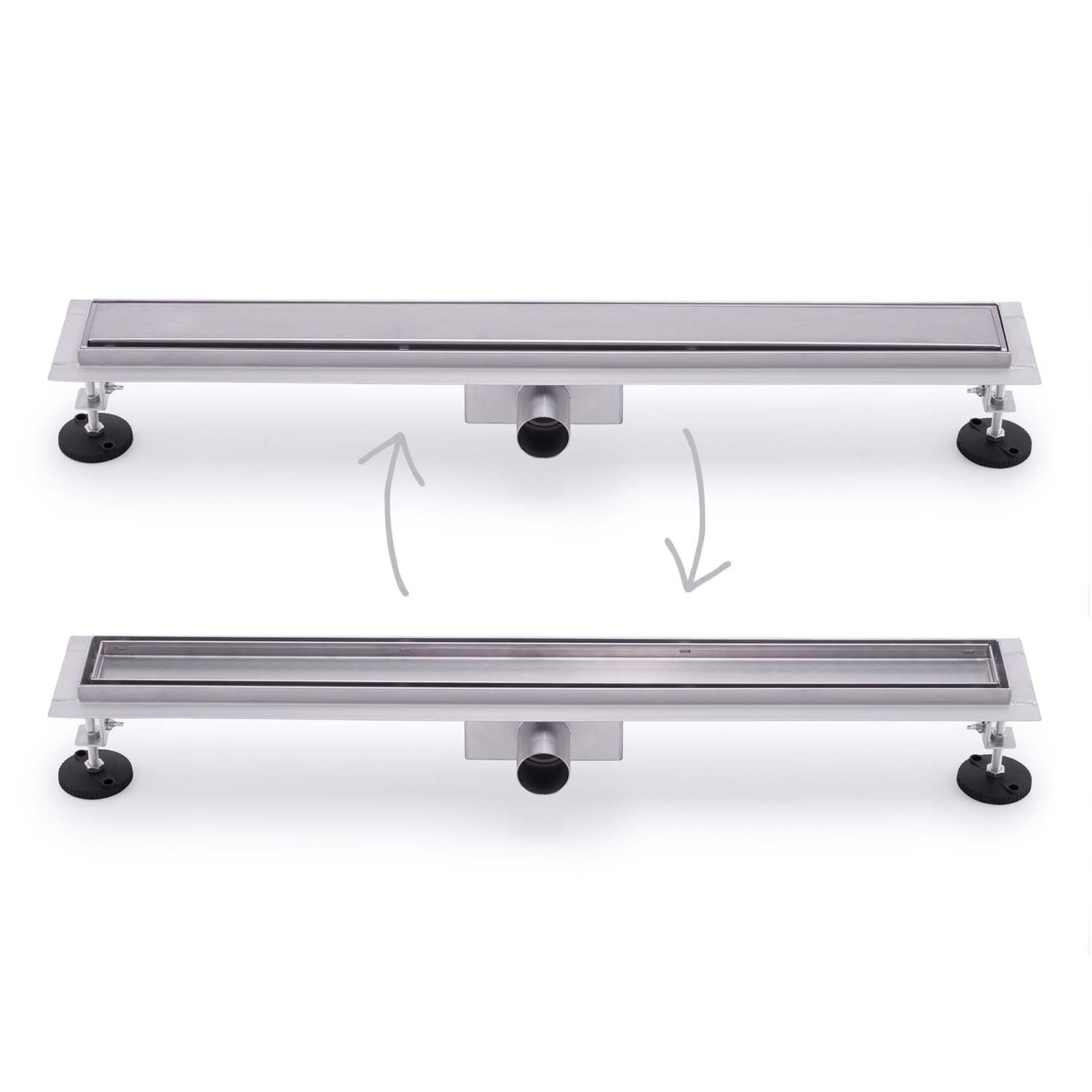

- Available in different designs and sizes
Technical information
- Grid length: 90 cm
- Width: 70mm (+ 20mm mounting flange on each side)
- Siphon diameter: 40/50 mm
- Capacity: about 35L/min
- Drain material: stainless steel AISI 304 Inox
- Material components: dirt trap and strainer: ABS, siphon reducer: PP
Performance

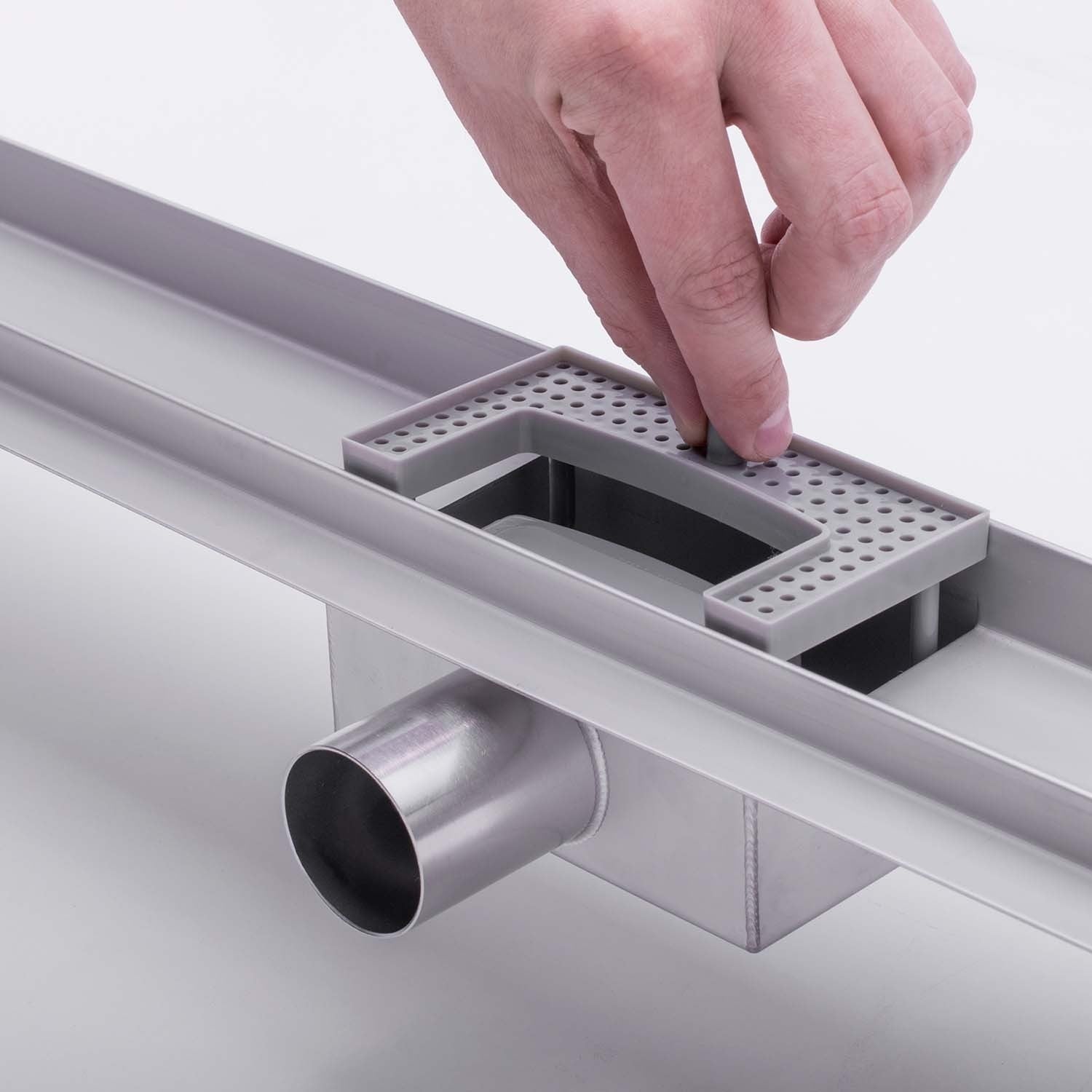

Robust construction in high-quality stainless steel 304, which is resistant to cleaning agents, guarantees full functionality for many years. The low steel siphon is covered with a strainer that can be easily removed for quick cleaning of the drain from above.
